The innovative ONYX PAINT PROCESSING SYSTEM is a cup-in-cup solution and combines the advantages of proven systems. The simple application makes painting more efficiently, faster and cleaner.
At the same time, the consumption of cleaning agents and solvents is significantly minimized: This not only saves material costs and time for cleaning work, but also considerably reduces the environmental impact.
In order to avoid unnecessary plastic waste, during development and production process the use of materials of the individual components was reduced to absolutely necessary and at the same time ensuring good durability and high quality. In comparison with other paint processing systems, a considerable amount of plastic will be saved and thus contributes to a better ecological balance during the paint process.
Convince yourself of the advantages and increase your productivity by using our ONYX PAINT PROCESSING SYSTEM and at the same time the quality in the daily use in various fields of application:
Construction machinery
Construction machinery
Maritime shipping
Maritime shipping
Aviation
Aviation
Rail transport
Rail transport
Bikes
Bikes
Furniture building
Furniture building
Industry
Industry
Advantages
1
2
3
4
5
1

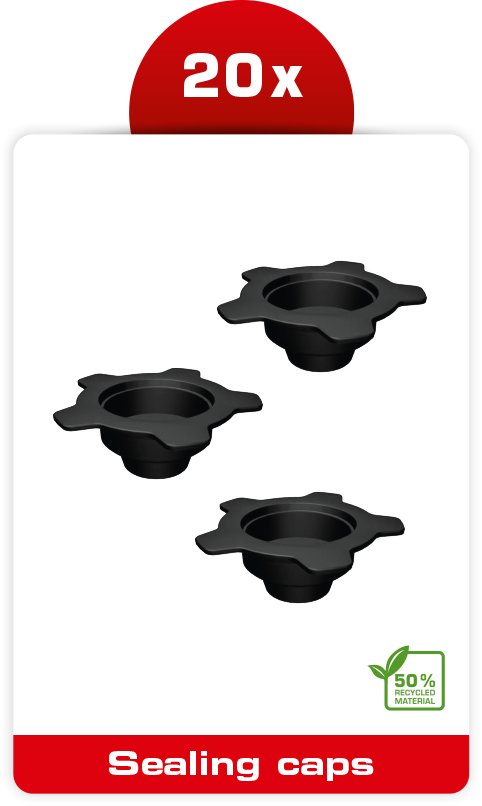

Sealing cap
Extra large cap enables to store the cup system upside down with unused paint.
2

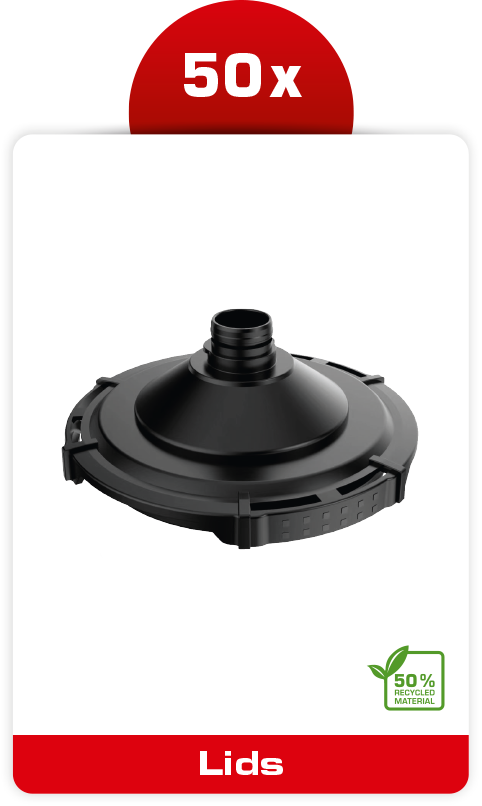

Lid
With secure quick-release fastener – the additional inner edge in the lid prevents paint from leaking or dripping.
3

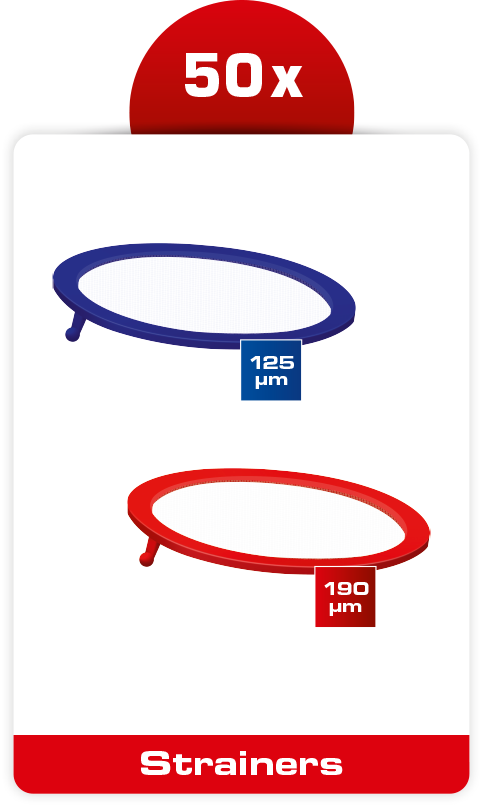

Strainer
Removable strainer enables quick change according to the viscosity of the fluid to be used. The different colour ensure a clear distinction and efficient process reliability:
blue = 125 μm strainer
red = 190 μm strainer
4

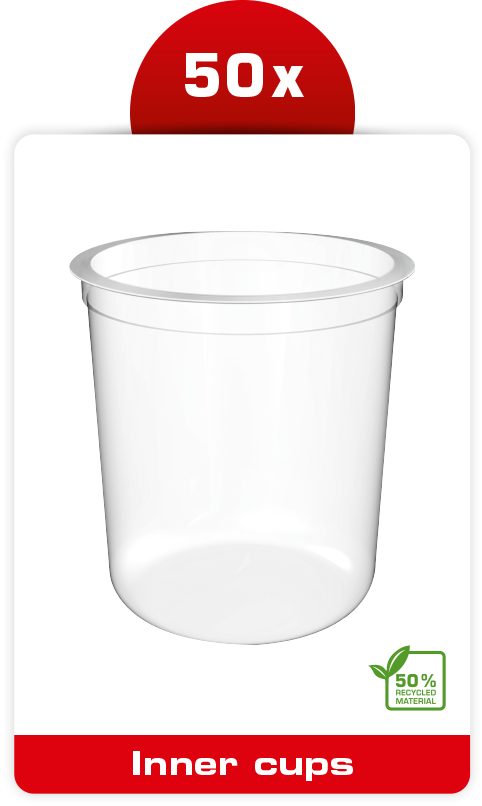

Disposable
inner cup
Disposable inner cup made from extra smooth and flexible polyethylene for the best possible paint flow. Ideal for frequent and quick colour change. Due to the resulting vacuum during application, overhead painting (360°) is possible and maximum use of colour is guaranteed.
5

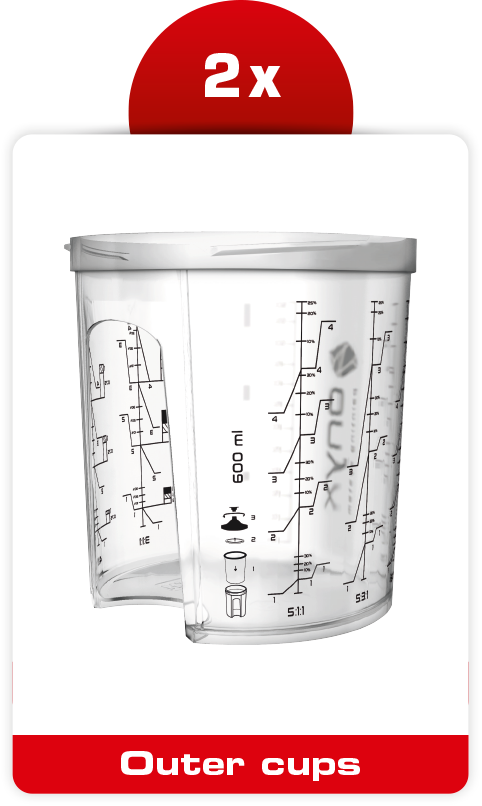

Reusable
outer cup
Robust reusable outer cup with seven different mixing scales. Access window allows you to hold the inner cup to remove the lid when refilling or after finishing the painting process.
Simple!
Clever!
Clean!
Each
set
contains
2×
Outer cups
50×
Inner cups
50×
Lids
50×
Strainers
20×
Sealing caps
Each
set
contains
2×
Outer cups
50×
Inner cups
50×
Lids
50×
Strainers
20×
Sealing caps
Strainers
2 different versions

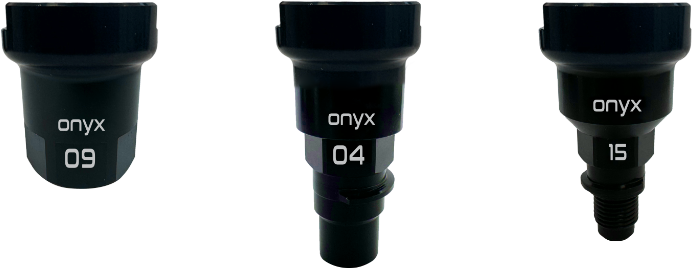

Adapter – Deep Black Series
Extra light aluminum
For a clear colour distinction and the highest possible
process security!
Find the right adapters for almost every common spray guns!

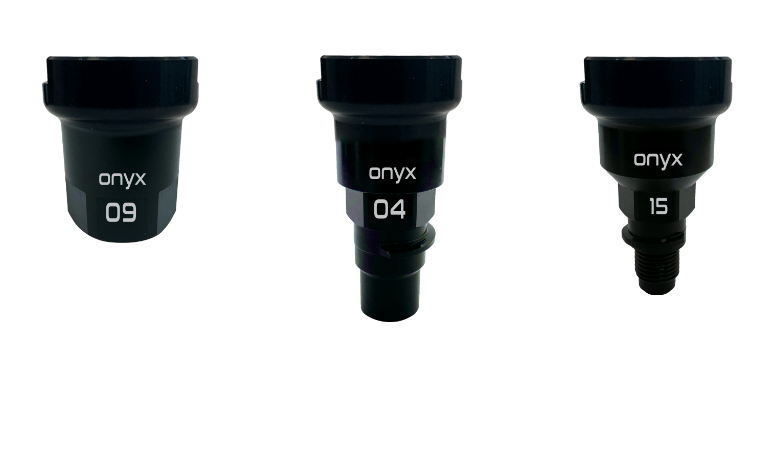

Adapter – Deep Black Series
Extra light aluminum
Find the right adapters for almost every common spray guns!
Cup system
4 sizes available
Before using
1. Insert the flexible, disposable inner cup into the stable, reusable outer cup. Mix the paint right in the disposable inner cup.
2. Press the strainer into the provided recess in the lid (note: blue strainer = 125 μm, red strainer = 190 μm). Press the lid with the inserted strainer on the stable reusable outer cup and turn until it locks.
3. Choose the right adapter and attach it to the spray gun. Rotate the spray gun by 180° and lock the adapter to the cover using light pressure and a simultaneous turn.
4. Pull the trigger of the spray gun until paint flows. This allows existing air to escape before starting the painting process.
5. Then rotate the spray gun back to its original position and regulate the air pressure according to the paint manufacturer‘s specifications – the system is now ready for use.
After the painting process
Disassembly
After the painting process, disconnect the air supply, turn the spray gun upside down again and pull the trigger. The excess paint is captured in this way. Remove the spray gun by turning and pulling at the same time.
Storage
To store the unused paint, close the lid airtight. The extralarge cap offers the possibility to store upside down and thus prevents a drying out of the strainer.
Disposal
After the paint has been completely used up, the disposable components of the system have to dispose according to the regional regulations. If the reusable outer cup once needs to be changed, then the used one can be fed into the conventional polypropylene recycling circuit.
In 5
steps
ready to go
Discover the painting
difference!
For more information, contact your specialist dealer or contact us.
